ISM Jewel Guard TL-30 Mark II

Model: F 4024

ISM is proud to present a new generation of
Underwriters Laboratories, Inc., tested and
labeled TL-30 Jewelry/Money Safes. This
sophisticated safe has advance design features
in the vital mechanisms not found in any other
safe in this price class. The locking mechanism
and boltwork are precision engineered with
automatic devices that will resist a concentrated burglary attack.

DOOR
The Mark II door has a minimum of 11/½" of
steel, plus a 3/8" hardened drill resisting steel
plate protecting the entire locking mechanism.
In addition, special hardened steel ball bearings
are placed in strategic locations to resist drilling
attacks.

BODY
The body of the Mark II is a minimum of 1"
thick steel. The construction employs advance
welding methods to form a jointless outer shell
of tough steel plate. The welds are hand ground
to give a smooth uninterrupted finish.

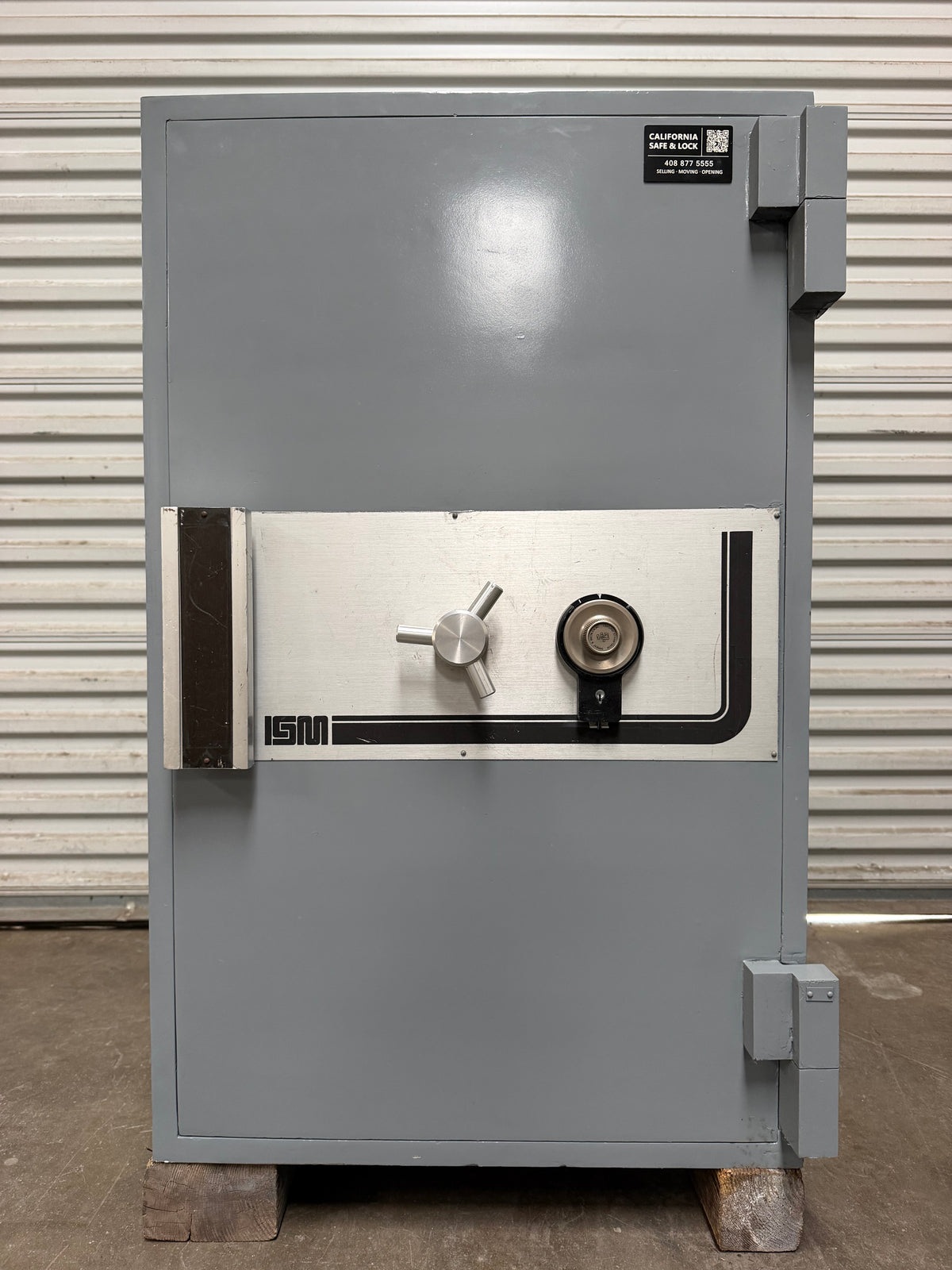

LOCKS
Standard TL-30's are equipped with a 3 wheel
combination lock with 1,000,000 possible combinations. The Mark Il is equipped with a 4
wheel, Underwriters Laboratories Group 2, key
change combination lock with over 100,000,000
possible combinations. The combination dial
and ring are satin nickel finished, and the dial is
equipped with a punch proof spindle. A bank
examiners hasp lock is incorporated into the
key locking combination dial as standard equipment. This offers dual control requiring two
people to be present to open the safe.
Two or three movement time locks are available
as an optional extra.

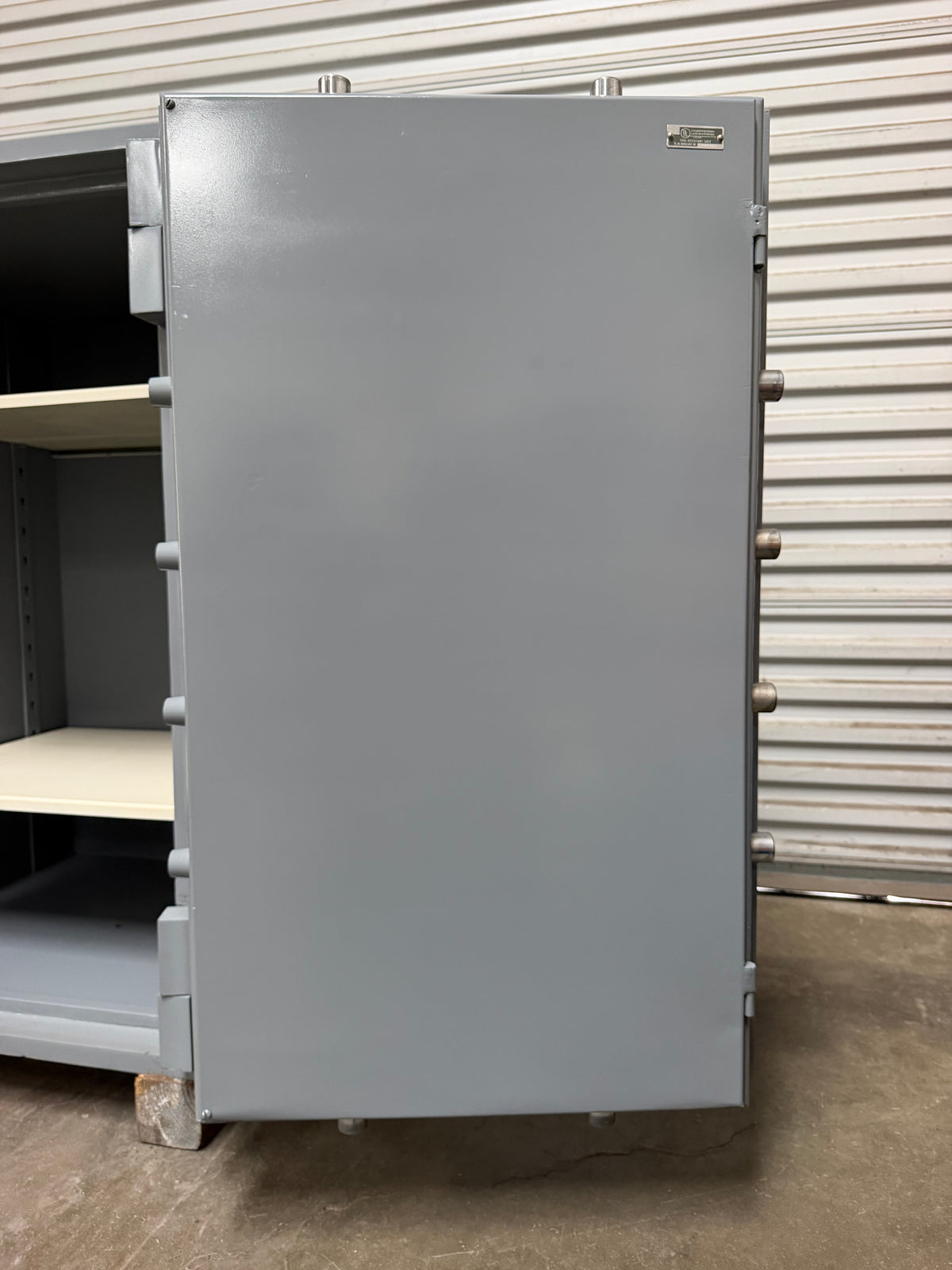

BOLTWORK
The Mark Il is equipped with three (3) way active
boltwork found on no other TL-30 in this class,
plus an additional double action locking
mechanism. By turning the handle to the locking position, the bolts first extend in three (3)
directions. Then a second movement engages
two (2) internal bolts which block an attack on
the side bolts. Eight (8) 1 3/16" diameter chrome
plated bolts (4 on the side, 2 on top, and 2 on
the bottom) provide superior positive locking action. Four (4) fixed bolts lock the hinge side of
the door. Models 6034 and 7234 have five (5)
bolts on each side. The entire mechanism is
protected by a special plating process, preventing oxidation and rusting.

RELOCKING MECHANISM
Only on the finest Jewelers/Bankers-type safes
selling for many times the price of the Mark Il is
found the unique glass plate covering the locking area. Any heavy hand tool, drill, torch, or explosive attack in this area will activate the
mechanism, relocking the safe independent of
the combination lock.

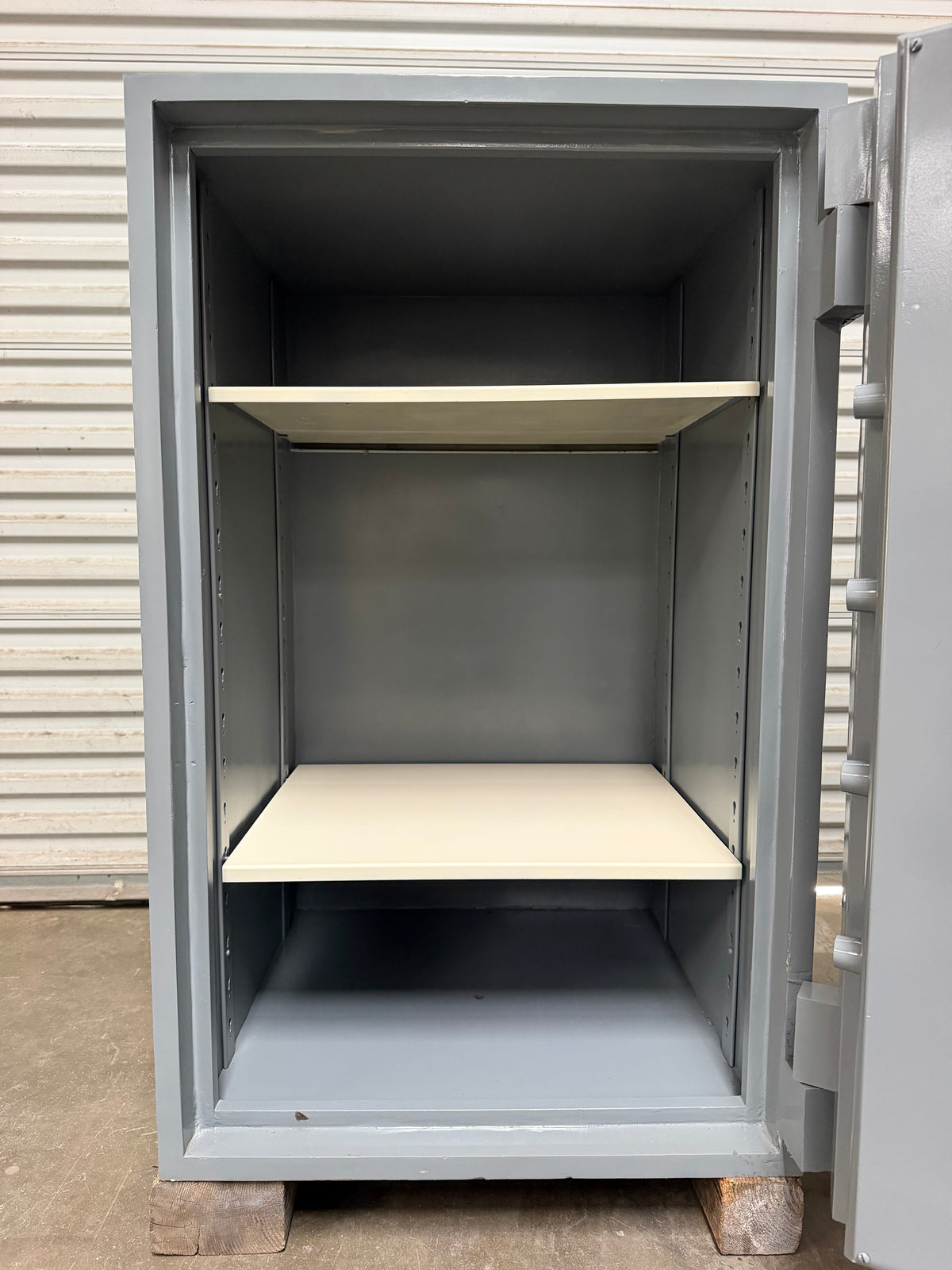

INTERIOR FITTINGS
Adjustable/removable shelves are available for
setting up the safe interior to accept jewelry
trays, cash trays, rolled coins, and other
valuables.
